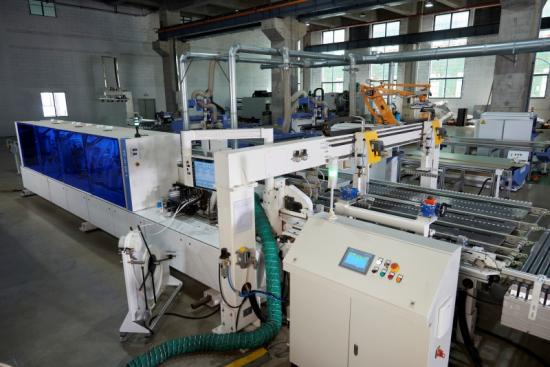

DEELEE edge banding machine, featuring three-axis lead screw transmission, offers high precision and strong stability. We are confident to be the first choice for furniture manufacturers!
Brand:
DEELEEItem NO.:
H-86-L-ZOrder(MOQ):
1Product Origin:
ChinaShipping Port:
Shanghai
Model: H-86-L-Z（Can edge banding narrow panels min 40mm）

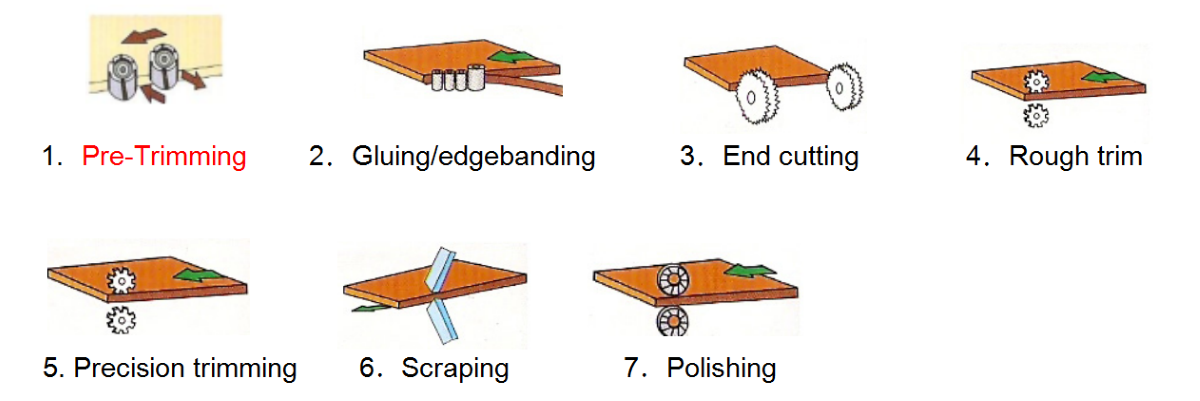

Main Steps
Step1: Spray Anti-adhesive
Spray anti-adhesive on the upper and lower surfaces of the workpiece edge to prevent the glue adhesive from sticking to the workpiece surface (spray).
Step2: Pre-milling
After cutting, there will be fine burrs on the edges of the board. Milling is a process of precisely smoothing the edges of the workpiece to facilitate the application of adhesive.

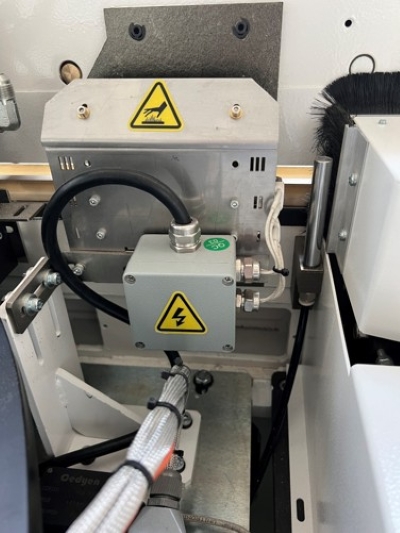

Step3: Panel Preheating + Glueing
Preheating is to enhance the adhesion between the board and the glue.
Step4: Edge Banding
The board and the edge banding are bonded with glue. The edge banding is usually made of PVC or ABS material.
Step5: Front and rear cutting device
Two motors are used to control two saw blades to cut off the edge banding at the head and tail of the board.
Step6: Rough Trimming (Optional)
Use a flat knife to cut off the excess upper and lower parts of the edge banding.
Step7: Fine Trimming
Use an R-angle knife to shape the top and bottom corners of the board into rounded corners.
Step8: Up and down Tracking and Trimming
Trim the corners at the front and back bonding areas of the board into rounded corners.
Step9: Scraper
Use a scraper and a leveling knife to remove the vibration marks left after finishing.
Step10: Cloth Wheel Polishing
Remove the excess glue and dust from the workpiece.
(The picture is for reference only)
Main Aggregates

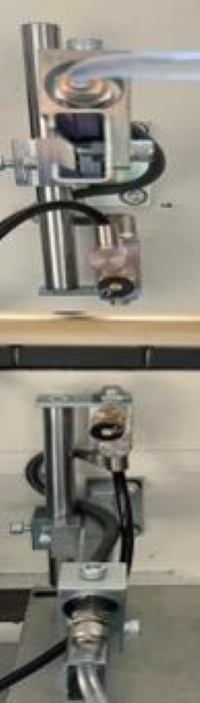

1. Anti-adhesive spraying device

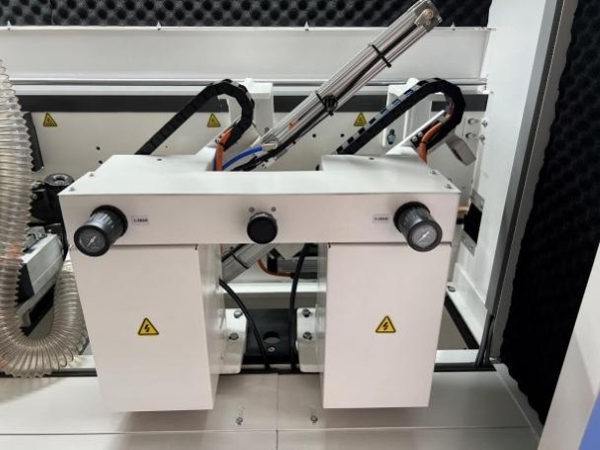

2. Double vertical shaft side-edge milling device

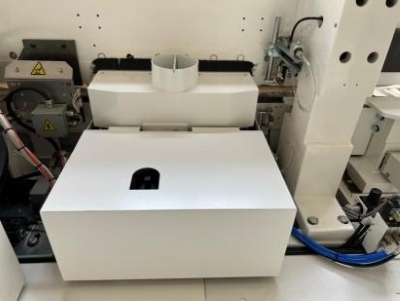

3. Gluing device
4. Front and rear cutting device

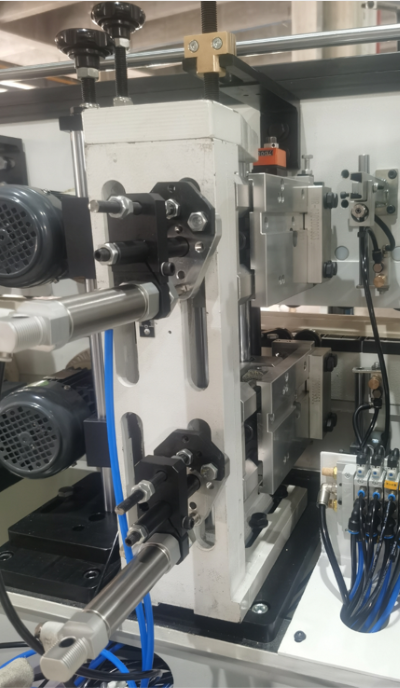

5. Rough trimming device (optional)

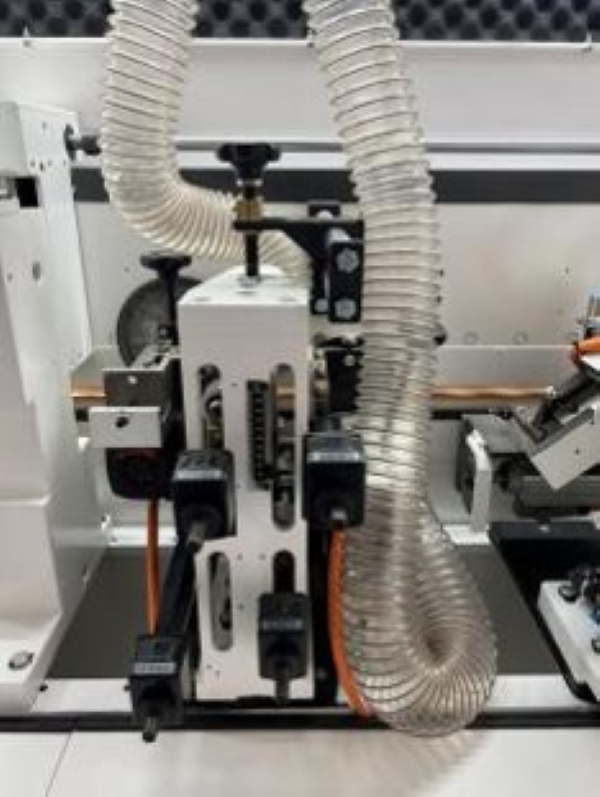

6. Chamfer / rounded corners up and down fine trimming device

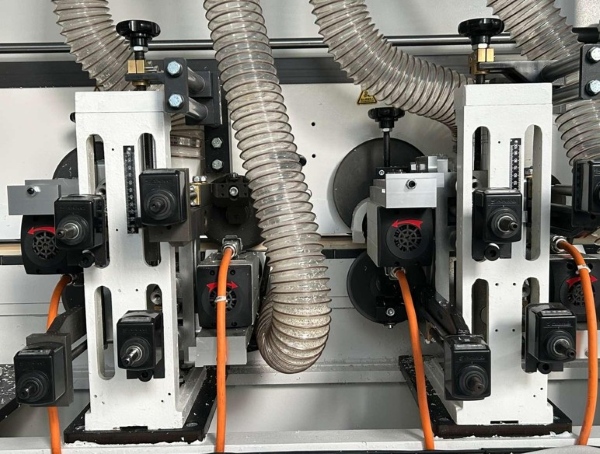

2 variable frequency motors, each with a power of 1.1 kW, 200 Hz, 12,000 rpm.
2 German diamond milling cutter
(easy to discharge shavings),
diameter 125*43*30 mm, keyway, tooth number Z=3*3.

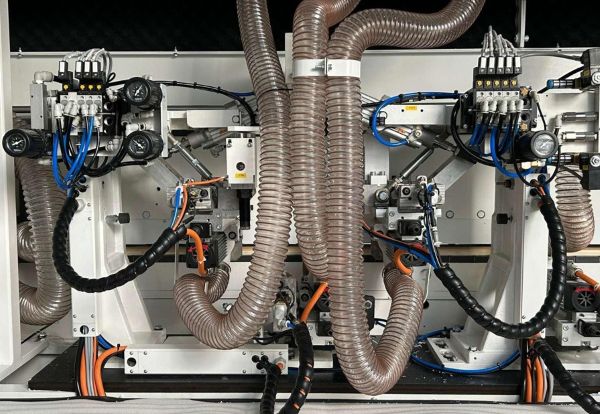

7. Up and down Tracking and Trimming Device (corner round)

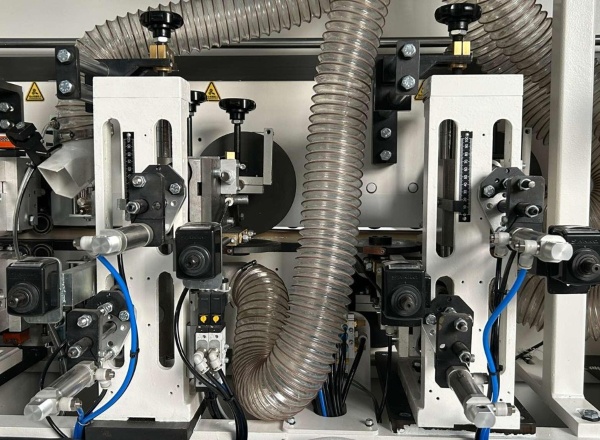

8. Scrapper device
9. Heavy-duty scraper and cloth wheel polishing device
Speed
18-22M/min
Min Panel Size
Narrow panel edge banding side：40-60mm(Long side 150-1500mm)
Edge banding long side：≥350mm(Short side≥40mm)
Machine Advantages
1. Automatic lifting system
2. 10cun Touch panel type computer screen control
3. Machine controlled by a limit swich and a encoder, Only accept a single signal can do all the banding processes, reduce the contact point in order to reduce the error rate and precision control the edge band margin.(3-5mm)
4. Rotary type edge band support disk.
5. Edge band feed table adopt double deck design, in order to reduce the effect of hot belt glue to the edge band.
6. Feed heating devices 0.22kw
7. Automatic gluing system.
8. Air pressure type edge banding press roller sets.
9. Use German linear guide rail structure, which has very high intention and precision.

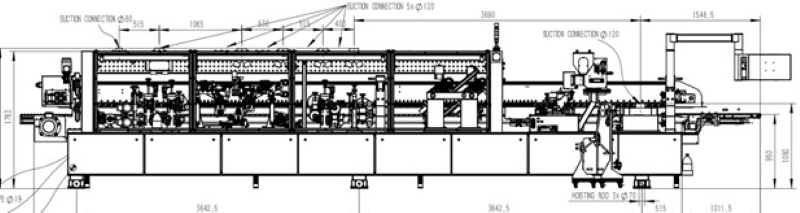

Machine Specifications
| Edge band thickness | 0.4 - 3 mm | Panel thickness | 10 - 60 mm |
| Feed belt speed | 15m/20m/23m/min(Three speed) | Min Panel width | 60 mm |
| Min Panel length | 150 mm | Panel interval | 520-580mm |
| Total power | 14.2kw（Including interver、transfer motor） | Air pressure | 6kg |
| Equipment weight | 1890kg | Packing size | 5397 x 830 x 1610 mm |
H-86-L belongs to heavy duty high quality edge banding machine, all main components are imported, such as cylinder from FESTO, valves are from AVENTICS and so on. adopts top level assembly technique standard for edge banding machine.
Learn More
Suitable for woodworking furniture industry, MDF products, chipboard and other wood processing materials. Efficient edge banding by using hot-melt technology.
Learn More
We are a heavy-duty mechanical manufacturing factory in China. We produce CNC machinery for woodworking furniture such as panel nesting machines, edge banding machines and six-sided drilling machines. The YC-H-86-L edge banding machine selects traditional PVC material and is suitable for most wooden furniture on the market, including but not limited to MDF and chipboard. We adhere to high quality and thoughtful service.
Learn More
Customizable Woodworking Furniture Edge Banding Machine made in China. Advanced hot-melt technology, using traditional PVC materials, a high-quality supplier for furniture manufacturers in many countries around the world!
Learn More
Welcome to contact us for consultation. We support customized services for CNC nesting machines and edge banding machines! For most furniture woods on the market, such as cabinets and door, we can adopt top assembly technology standards.
Learn More
