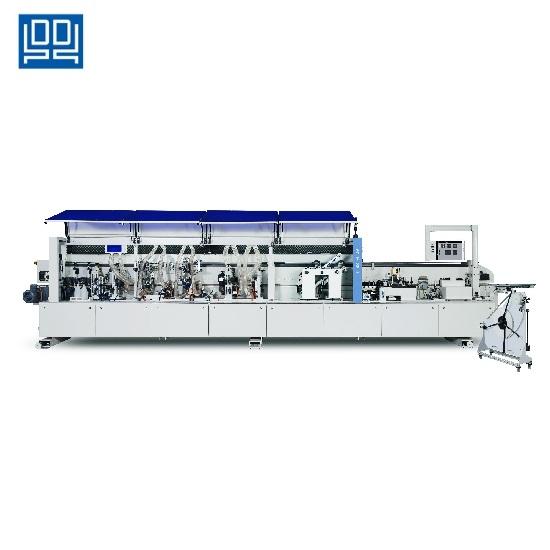

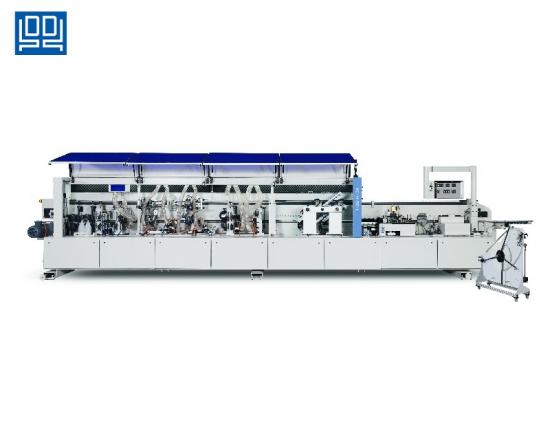

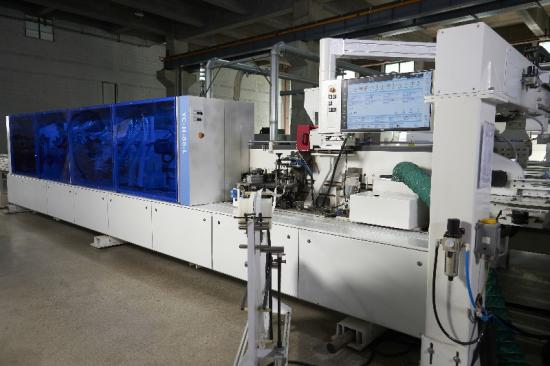

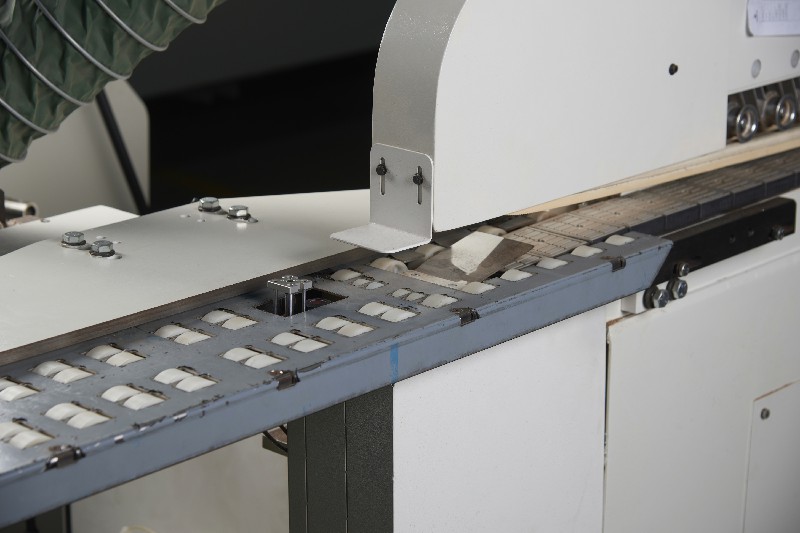

DEELEE Hot Melt PVC Heavy-duty Edge Banding Machine Heavy Duty Edge Bander

Model: H-86-L（Standard configuration）

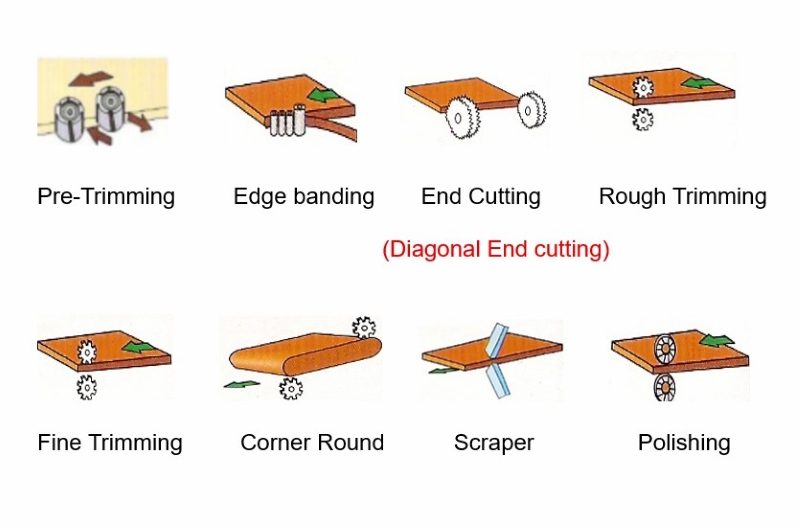

Main Steps

Step1: Spray Anti-adhesive

Spray anti-adhesive on the upper and lower surfaces of the workpiece edge to prevent the glue adhesive from sticking to the workpiece surface (spray).

Step2: Pre-milling

After cutting, there will be fine burrs on the edges of the board. Milling is a process of precisely smoothing the edges of the workpiece to facilitate the application of adhesive.

Step3: Panel Preheating + Glueing

Preheating is to enhance the adhesion between the board and the glue.

Step4: Edge Banding

The board and the edge banding are bonded with glue. The edge banding is usually made of PVC or ABS material.

Step5: Diagonal End Cutting Device

Two motors are used to control two saw blades to cut off the edge banding at the head and tail of the board.

Step6: Rough Trimming (Optional)

Use a flat knife to cut off the excess upper and lower parts of the edge banding.

Step7: Fine Trimming

Use an R-angle knife to shape the top and bottom corners of the board into rounded corners.

Step8: Corner Round

Trim the corners at the front and back bonding areas of the board into rounded corners.

Step9: Scraper

Use a scraper and a leveling knife to remove the vibration marks left after finishing.

Step10: Heacy duty Scraper and Cloth Wheel Polishing

Remove the excess glue and dust from the workpiece.

The main steps is as above (excluding steps such as glue)

The pictures are for reference only

Main Aggregates

1. Anti-adhesive spraying device

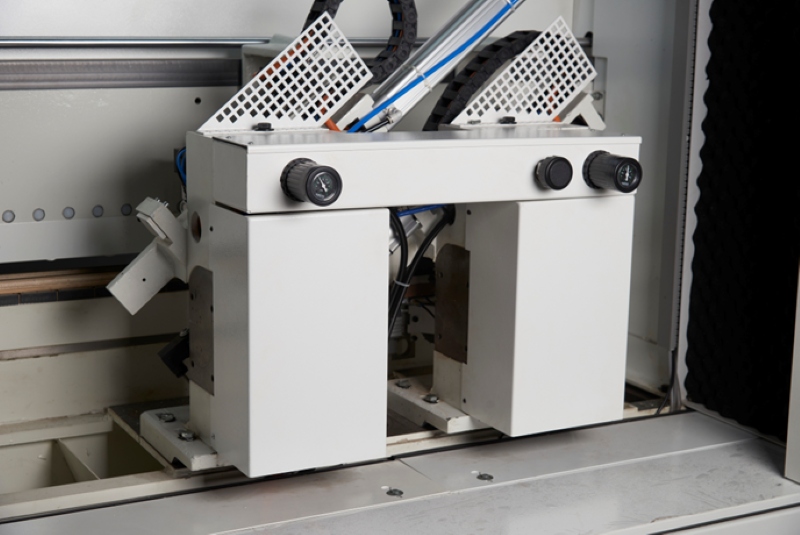

2. Double vertical shaft side-edge milling device

2 variable frequency motors, each with power of 4 kW, 150 Hz, 9000 rpm.

2 diamond milling cutter, diameter 125*43*30 mm, keyway, number of teeth Z=3*3.

3. Gluing device

Temperature electronic control.

4. Diagonal End Cutting Device

2 motors, each with a power of 0.8 kW, 200 Hz, and 12,000 rpm.

2 sheet carbide saw blades, 120 mm in diameter.

5. Rough trimming device (optional)

2 frequency conversion motors, each motor power is 1.1 kW, 200 Hz, 12,000 rpm.

2 German Leuco diamond cutter, size φ 70*25 mm, Z=4.

6. Fine trimming device

2 variable frequency motors, each with a power of 1.1 kW, 200 Hz, 12,000 rpm.

2 German diamond milling cutter

(easy to discharge shavings),

diameter 125*43*30 mm, keyway, tooth number Z=3*3.

7. Up and down Tracking and Trimming Device (corner round)

4 motors, each motor with a power of 0.4 kW, 200 Hz, 12,000 rpm.

4 German diamond tool (easy to discharge shavings function), size φ 70*12 mm, tooth number Z=4, for 15 degrees chamfer and R=1.5 mm arc.

8. Scrapper device

2 quick change knife holder, with rotary carbide imitation blade, R=1.5 mm.

9. Heavy-duty scraper and cloth wheel polishing device

Heavy-duty scraper device.

Upper and lower cleaner spraying device (RRP, Germany).

With 2 detergent nozzles (spray form).

Optional Selection

PUR glue pot optional (For specific price, please feel free to contact us)

Speed

18-25M/min

Min Panel Size

150*240mm(four sides)

Machine Advantages

1. Automatic lifting system

2. 10cun Touch panel type computer screen control

3. Machine controlled by a limit swich and a encoder, Only accept a single signal  can do  all the banding processes, reduce the contact point in order to reduce the error rate and precision control the edge band margin.(3-5mm)

4. Rotary type edge band support disk.

5. Edge band feed table adopt double deck design, in order to reduce the effect of hot belt glue to the edge band.

6. Feed heating devices 0.22kw

7. Automatic gluing system.

8. Air pressure type edge banding press roller sets.

9. Use German linear guide rail structure, which has very high intention and precision.

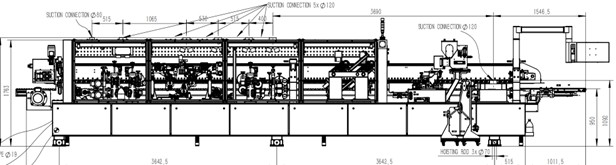

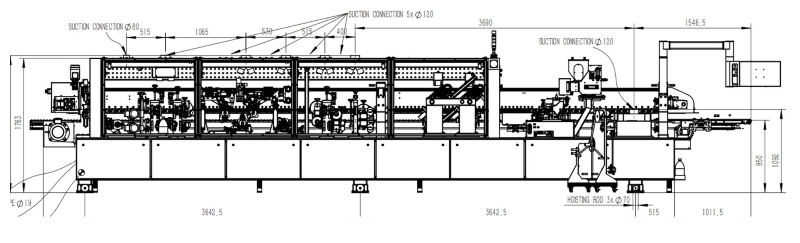

Machine Specifications
