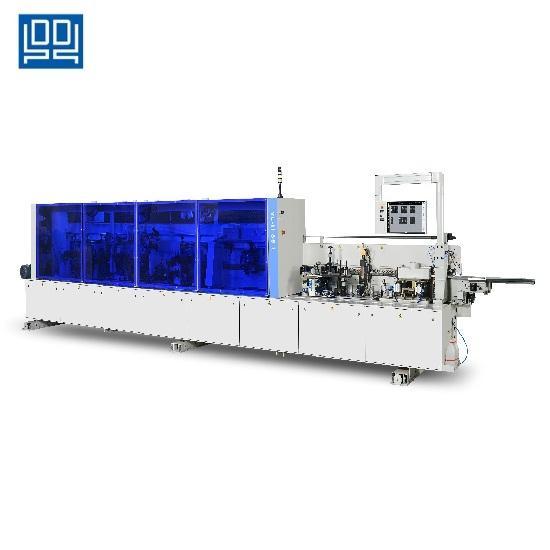

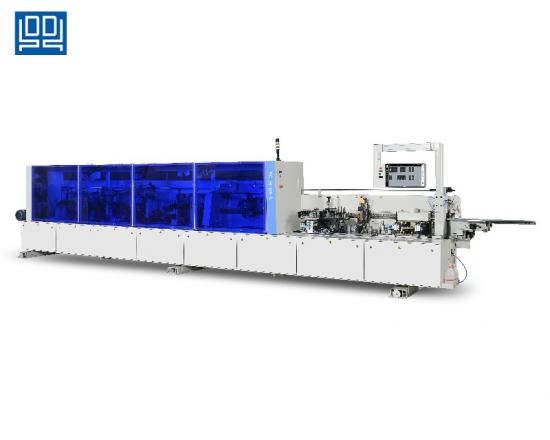

Customizable Woodworking Furniture Edge Banding Machine made in China. Advanced hot-melt technology, using traditional PVC materials, a high-quality supplier for furniture manufacturers in many countries around the world!
Brand:
DEELEEItem NO.:
H-76-LOrder(MOQ):
1Product Origin:
ChinaShipping Port:
Shanghai
Model: H-76-L（Usually edge banding 0.4-1mm thickness edge tapes. So that no need to use corner round.Grooving unit can grove slot after edge banding）
Suitable for cabinets, chipboards, MDF and any other panel woodworking furniture.

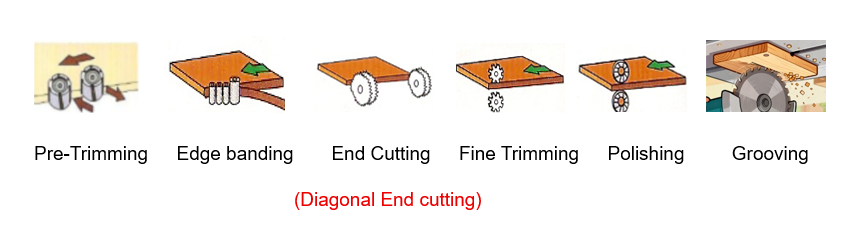

Main Configuration
1.EVA glue pot;
2.Diagonal End cutting;
3.Fine trimming;
4.Corner round;
5.Heavy-duty Scraper;
6.Polishing unit;
7.Grooving unit
Optional Selection
PUR glue pot optional (For specific price, please feel free to contact us)
Speed
18-28M/min
Min Panel Size
150*240mm(four sides)
Machine Advantages
1. Automatic lifting system

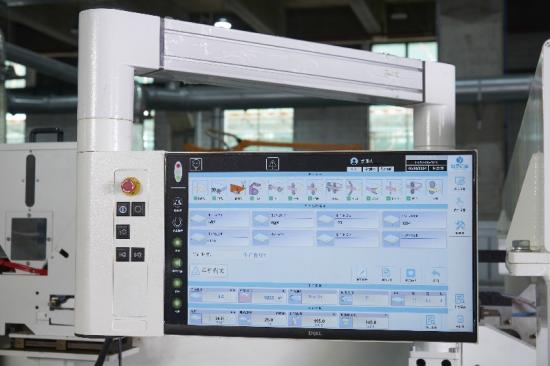

2. 10cun Touch panel type computer screen control
3. Machine controlled by a limit swich and a encoder, Only accept a single signal can do all the banding processes, reduce the contact point in order to reduce the error rate and precision control the edge band margin.(3-5mm)
4. Rotary type edge band support disk.
5. Edge band feed table adopt double deck design, in order to reduce the effect of hot belt glue to the edge band.
6. Feed heating devices 0.22kw
7. Automatic gluing system.
8. Air pressure type edge banding press roller sets.
9. Use German linear guide rail structure, which has very high intention and precision.

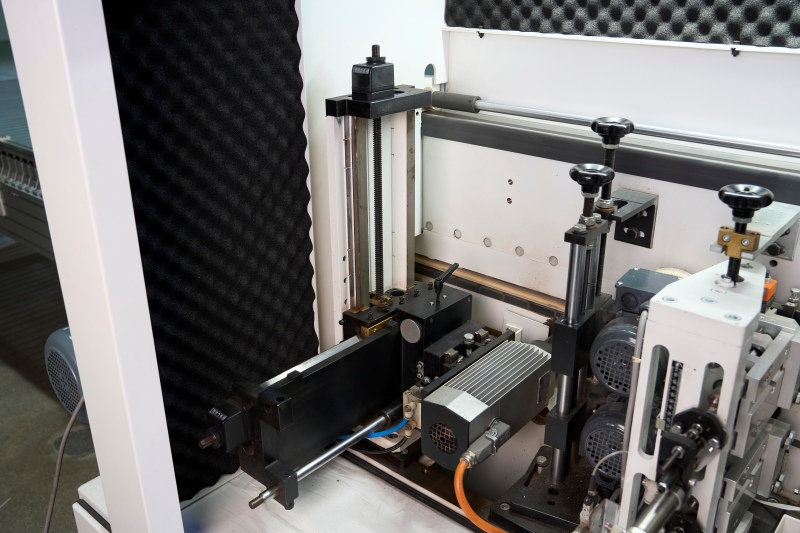

10. High speed Pre-trimming device 2.2kw X2(2 Diamond trim knives, trimming height: 35mm), two independent motors and intervers control.

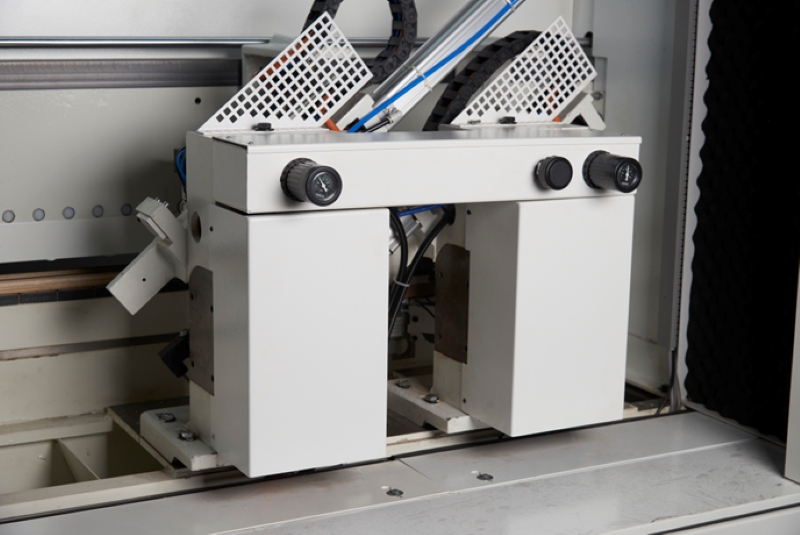

11. Double head high speed trimming devices 0.35kwX2（Independent interver control，with 2 Cropping saw disc）
12. Up/Down high speed rough trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，with 2 flat trimming knives）
13. Up/Down high speed precision trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，withR2 2 flat trimming knives）
14. Up/Down 2mmPVC scraper（with numeration adjustment display panel and dust extraction system）（with 2 R2 scraper knives）
15. Up/Down polishing devices 0.37kwX2（with 2 polishing wheels ）
Machine Specifications
| Edge band thickness | 0.4 - 3 mm | Panel thickness | 10 - 60 mm |
| Feed belt speed | 15m/20m/23m/min(Three speed) | Min Panel width | 60 mm |
| Min Panel length | 150 mm | Panel interval | 520-580mm |
| Total power | 14.2kw（Including interver、transfer motor） | Air pressure | 6kg |

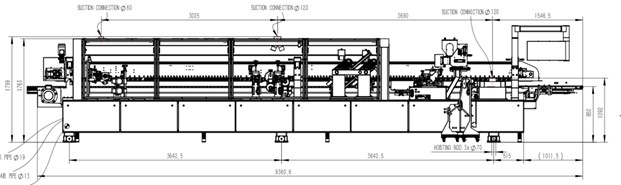

| Equipment weight | 1890kg | Packing size | 5397 x 830 x 1610 mm |
Functions
H-86-L belongs to heavy duty high quality edge banding machine, all main components are imported, such as cylinder from FESTO, valves are from AVENTICS and so on. adopts top level assembly technique standard for edge banding machine.
Learn More
Suitable for woodworking furniture industry, MDF products, chiboard and other wood processing materials. Efficient edge banding by using hot-melt technology.
Learn More
We are a heavy-duty mechanical manufacturing factory in China. We produce CNC machinery for woodworking furniture such as panel nesting machines, edge banding machines and six-sided drilling machines. The YC-H-86-L edge banding machine selects traditional PVC material and is suitable for most wooden furniture on the market, including but not limited to MDF and chipboard. We adhere to high quality and thoughtful service.
Learn More
Welcome to contact us for consultation. We support customized services for CNC nesting machines and edge banding machines! For most furniture woods on the market, such as cabinets and door, we can adopt top assembly technology standards.
Learn More

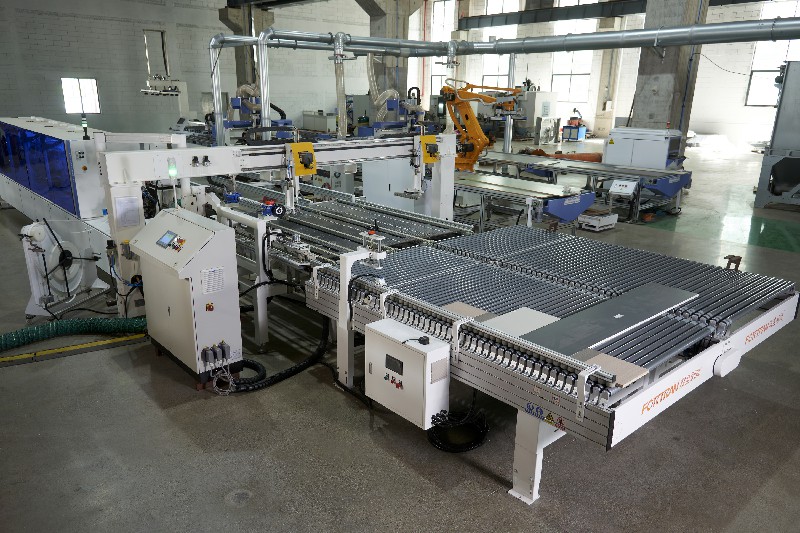

Our fully automatic front and back cabinet door panel production line is the first domestic production line for the automatic processing of thermofoil kitchen cabinet door.
