Welcome to contact us for consultation. We support customized services for CNC nesting machines and edge banding machines! For most furniture woods on the market, such as cabinets and door, we can adopt top assembly technology standards.
Brand:
DEELEEItem NO.:
H-96SQ-LOrder(MOQ):
1Product Origin:
ChinaShipping Port:
Shanghai

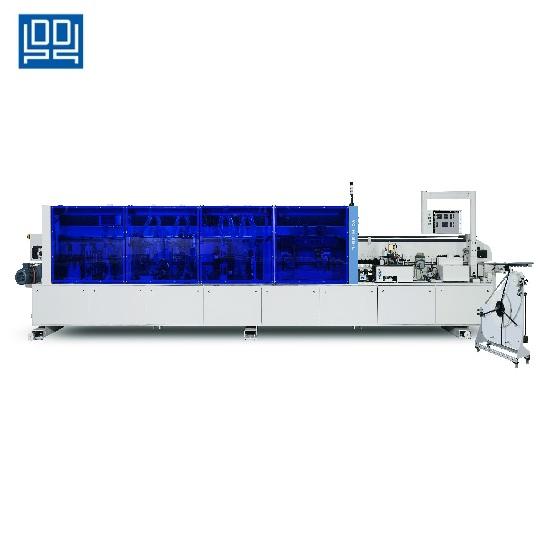

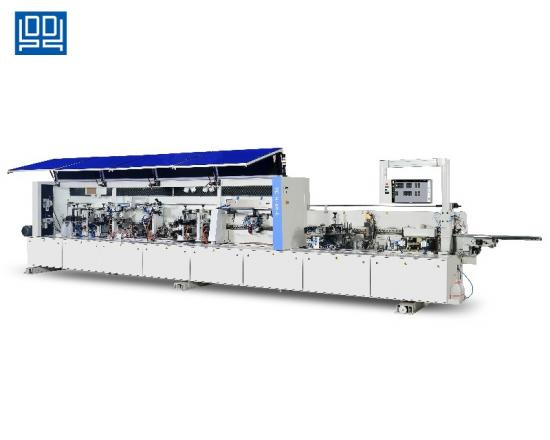

Model: H-96SQ-L（Dual fine trimming and scraper, when process two thickness of edge tapes, no need to adjust again except corner round.）
According to the different requirements of users, we support the customization of heavy-duty, medium and small-sized edge banding machines.

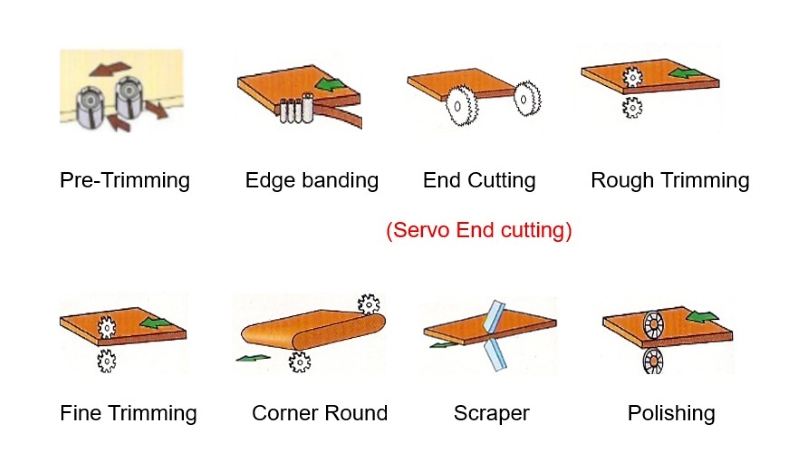

Main Configuration
1.EVA glue pot;
2.Diagonal End cutting;
3.Rough trimming;
4.Fine trimming;
5.Corner round;
6.Scraper R1;
7.Heavy-duty Scraper;
8.Polishing unit
Optional Selection
PUR glue pot optional (For specific price, please feel free to contact us)
Speed
18-25M/min
Min Panel Size
120*240mm(four sides)
Machine Advantages
1. Automatic lifting system
2. 10cun Touch panel type computer screen control
3. Machine controlled by a limit swich and a encoder, Only accept a single signal can do all the banding processes, reduce the contact point in order to reduce the error rate and precision control the edge band margin.(3-5mm)
4. Rotary type edge band support disk.
5. Edge band feed table adopt double deck design, in order to reduce the effect of hot belt glue to the edge band.
6. Feed heating devices 0.22kw
7. Automatic gluing system.

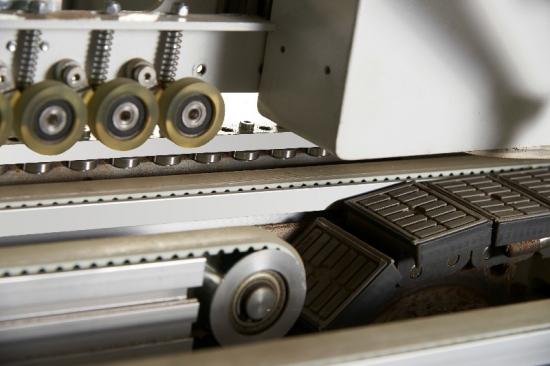

8. Air pressure type edge banding press roller sets.
9. Use German linear guide rail structure, which has very high intention and precision.
10. High speed Pre-trimming device 2.2kw X2(2 Diamond trim knives, trimming height: 35mm), two independent motors and intervers control.
11. Double head high speed trimming devices 0.35kwX2（Independent interver control，with 2 Cropping saw disc）

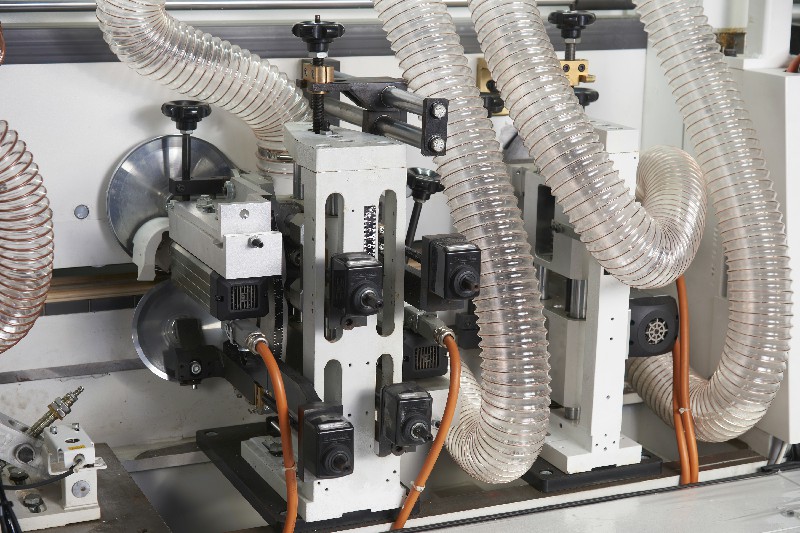

12. Up/Down high speed rough trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，with 2 flat trimming knives）
13. Up/Down high speed precision trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，withR2 2 flat trimming knives）
14. Up/Down 2mmPVC scraper（with numeration adjustment display panel and dust extraction system）（with 2 R2 scraper knives）
15. Up/Down polishing devices 0.37kwX2（with 2 polishing wheels ）
Machine Specifications
| Edge band thickness | 0.4 - 3 mm | Panel thickness | 10 - 60 mm |
| Feed belt speed | 15m/20m/23m/min(Three speed) | Min Panel width | 60 mm |
| Min Panel length | 150 mm | Panel interval | 520-580mm |
| Total power | 14.2kw（Including interver、transfer motor） | Air pressure | 6kg |
| Equipment weight | 1890kg | Packing size | 5397 x 830 x 1610 mm |
Functions
H-86-L belongs to heavy duty high quality edge banding machine, all main components are imported, such as cylinder from FESTO, valves are from AVENTICS and so on. adopts top level assembly technique standard for edge banding machine.
