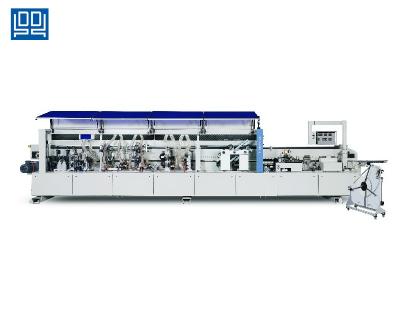

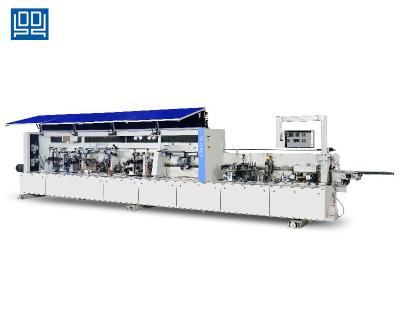

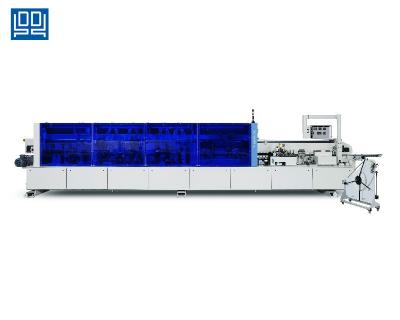

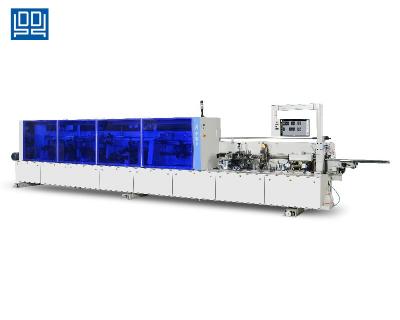

linear banding machine with shape imitation trimming and Pre-Trimming.
Item NO.:
SE-108Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
30 days
Machine Advantages
1. Automatic lifting system
2. 10cun Touch panel type computer screen control
3. Machine controlled by a limit swich and a encoder, Only accept a single signal can do all the banding processes, reduce the contact point in order to reduce the error rate and precision control the edge band margin.(3-5mm)
4. Rotary type edge band support disk.
5. Edge band feed table adopt double deck design, in order to reduce the effect of hot belt glue to the edge band.
6. Automatic gluing system.
7. Air pressure type edge banding press roller sets.
8. Use German linear guide rail structure, which has very high intention and precision.
9. High speed Pre-trimming device 2.2kw X2(2 Diamond trim knives, trimming height: 35mm), two independent motors and inverters control.
10. Double head high speed trimming devices 0.35kwX2（Independent interver control，with 2 Cropping saw disc）
11. Up/Down high speed rough trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，with 2 flat trimming knives）
12. Up/Down high speed precision trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，withR2 2 flat trimming knives）
13. Up/Down high speed rough trimming devices shape imitation rounded corner trimming（with numeration adjustment display panel）0.35kwX2（With 2 R2 imitation rounded corner trimming knives）
14. Up/Down 2mmPVC scraper（with numeration adjustment display panel and dust extraction system）（with 2 R2 scraper knives）
15. Up/Down polishing devices 0.37kwX2（with 2 polishing wheels ）
Machine Specifications
| Edge band thickness | 0.4 - 3 mm | Panel thickness | 10 - 60 mm |
| Feed belt speed | 15m/20m/23m/min(Three speed) | Min Panel width | 60 mm |
| Min Panel length | 150 mm | Panel interval | 520-580mm(Tracking 750mm) |
| Total power | 15.7kw（Including interver、transfer motor） | Air pressure | 6.5kg |
| Equipment weight | 2280kg | Packing size | 7800 x 1700 x 900 mm |
Functions
H-86-L belongs to heavy duty high quality edge banding machine, all main components are imported, such as cylinder from FESTO, valves are from AVENTICS and so on. adopts top level assembly technique standard for edge banding machine.
