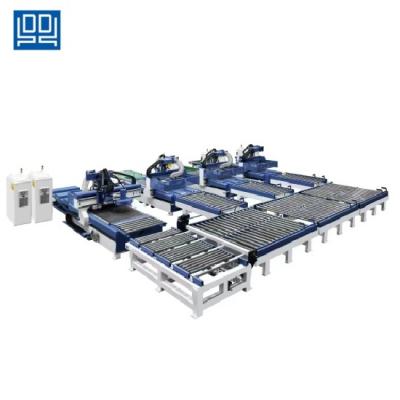

CNC nesting machining center for cabinet furniture making, with auto loading and unloading system, one day can process 150 pcs large boards for cabinet nesting or about 40 pcs boards for kitchen cabinet door engraving and nesting.
Brand:
DEELEEItem NO.:
DLX-010Order(MOQ):
1Product Origin:
ChinaShipping Port:
ShanghaiMain Functions
1. The loading method is gantry type suction cup loading, no need to dig a pit, does not affect the number of boards, and avoids the scratch of high gloss boards.
2. After labeling, the board will be automatically transported to the transverse conveying table, and its conveying direction is controlled by the central control system.
3. It is automatically positioned after being grabbed to the table by CNC machine, and then the processing is started. The nesting machine of DEELEE machining center supports 4/8, 4/9, 7/9 and 7/10 feet boards.
The board to be processed is sent to the corresponding board processing system to do the processing, milling, engraving, drilling or cutting of the board.
4.Afterwards, the processed plates will be automatically pushed onto the unloading platform and sorted manually by people.
Nesting Machine Advantages
 |
Three axis all use screw rod transmission. Full-screw transmission machine has good synchronization performance and no rotation gap, which is more suitable for the kitchen cabinet processing with high precision requirements. The angle is well raised, and there is no knife mark. The screw machine has high stability and is not easy to break the knife. The Φ6 tool bit can also cut smoothly, it is easy to break if use gear rack machine. |
 |
The table has a double-layer structure and a gas storage cavity, which greatly increases the empty adsorption capacity. |
 |
Own designed dust collector, the dust removal effect can make the dust in the slit of the knife little, and there is almost no dust on the table during processing, let the workshop clean and tidy. |
 |
PMI guide rails are matched with three PMI/silver sliders on each guide rail to increase machine stability. |
 |
9kw air cooling HSD spindle from Italy. High tool change speed with 20 tools storage. |
Production Parameters of Cabinet Nesting
| DLX-010-GT | ||
| Number of large boards consumption | Pcs / 10 Hours | 130-150 |
| Actual production capacity | M² / 10 Hours | 350-500 |
| Utilization rate of boards | % | 0.9 |
| Equipment power | KW | 24(Including vacuum pump) |
| Labor cost | Person / Set | ＜1 |
| Subplate consumption | Boards / 1Pcs spoil board | 1000 |
| Tool consumption | Boards / 1Pcs milling cutter | 60 |
| Production line price | US Dollars | Subject to the quoted price |
| Floor space occupied | M² | 20 |
Production Parameters of Kitchen Cabinet Door
| DLX-010-GM | ||
| Number of large boards consumption | Pcs / 10 Hours | 30-40 |
| Actual production capacity | M² / 10 Hours | 80 |
| Utilization rate of boards | % | 0.9 |
| Equipment power | KW | 24(Including vacuum pump) |
| Labor cost | Person / Set | ＜1 |
| Subplate consumption | Boards / 1Pcs spoil board | 1000 |
| Tool consumption | Months / 1set of diamond knives | 2-3 months |
| Production line price | US Dollars | Subject to the quoted price |
| Floor space occupied | M² | 20 |
121 cabinet nesting production line consists of one labeling machine, two nesting cnc machine and one robot. This line can process around 300pcs boards a day in 10 working hours, only need one person to operate.
