121 Intelligent Labeling and Nesting Cell for Panel Furniture Production Line

Application

121 intelligent labeling and nesting cell for panel furniture production line is a specially designed production linefor the manufacturing of furniture panel. It provides a smart CNC solution for customized panel cabinet furniture production. Production line's capacity can up to 700m² a day in 9 hours, and worker's labor intensity is low.

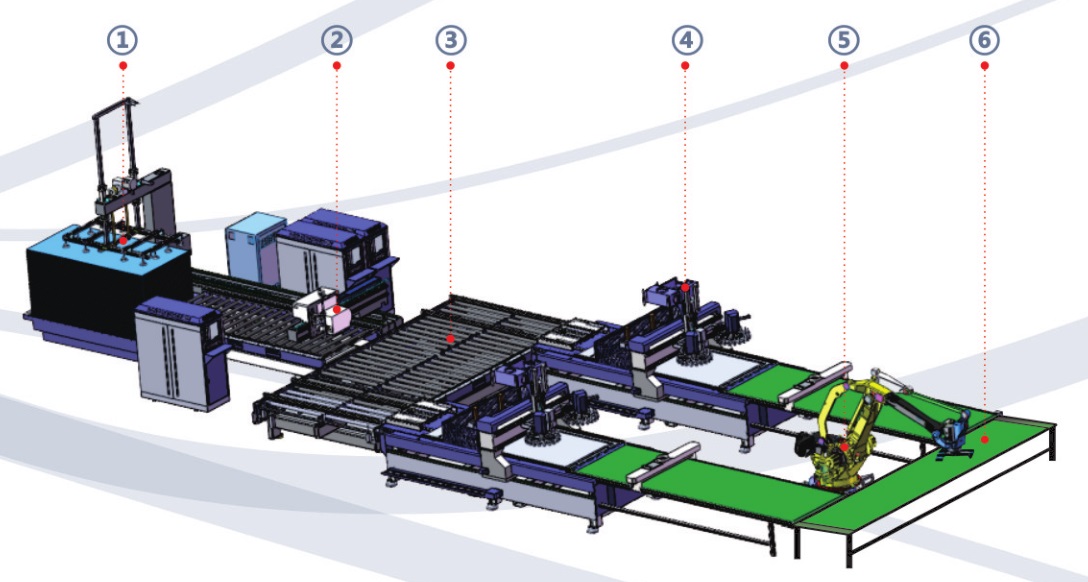

Production Line Workflow

1.Under the control of the central control system, the board to be processed are sent from the board feeding system to the board surface processing system,

2.Auto labeling according to the number and position of the board in the board surface processing system. then push the labeled board out of the conveyor system

3.The central control system controls its conveying direction.

4.The board to be processed is sent to the corresponding board processing system to do the processing, milling, drilling or cutting of the board.

5.The processed board is sent to the finished product automatic sorting system 11, and the panels is sorted and collected by the robot, then transport to the next process or placed in the material storage.

6.After the automatic sorting of the plates is completed, the remaining materials are processed by waste material collection system.

Production Line Capacity and Consumption
