5 Different Styles of Edge Banding Machines

Oct 21, 2025

How to choose a cost-effective edge banding machine for your cabinet production line?

Don’t worry, DEELEE has five different kinds of PVC edge banding machines at different specifications and prices, and they have different functions.

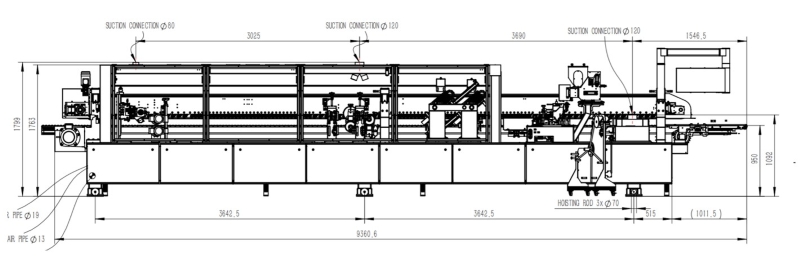

1. H-86-L

Glue Pot	EVA ( Optional PUR )
* Laser Edge Banding	( Optional )
Type of Cutting	Diagonal End cutting
Rough trimming	Yes
Corner round	Yes
Minimum workpiece size ( length*width )	240*150mm
Edge Banding Thickness	0.3-3mm
Speed	18-25 meters/min

( H-86-L )

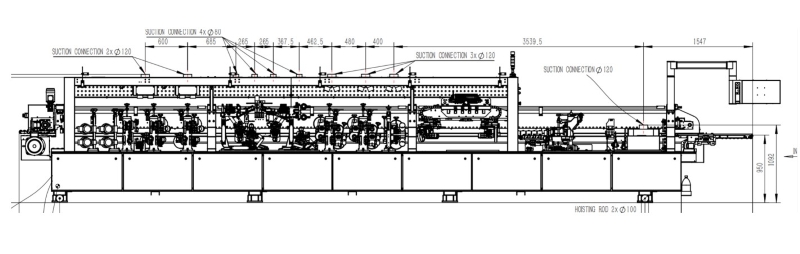

2. H-86SQ-L

Glue Pot	EVA ( Optional PUR )
* Laser Edge Banding	( Optional )
Type of Cutting	Servo Horizontal End cutting
Rough trimming	Yes
Corner round	Yes
Minimum workpiece size ( length×width )	240*120mm
Edge Banding Thickness	0.3-3mm
Speed	18-30 meters/min
	18-25 meters/min ( with corner round )

( H-86SQ-L )

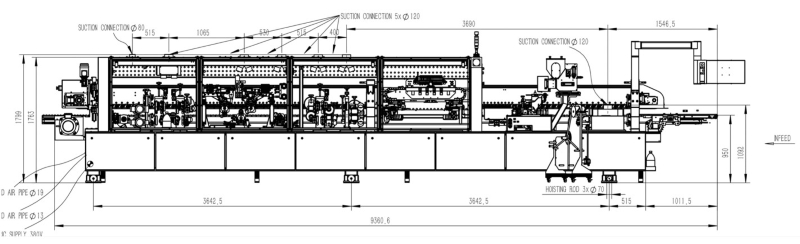

3. H-76-L

Glue Pot	EVA ( Optional PUR )
* Laser Edge Banding	( Optional )
Type of Cutting	Diagonal End cutting
Rough trimming	Optional
Corner round	No
Minimum workpiece size ( length×width )	240*150mm
Edge Banding Thickness	0.4-0.8mm
Speed	18-28 meters/min

( H-76-L )

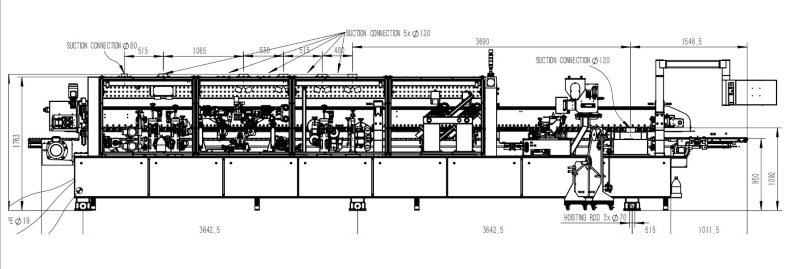

4. H-96SQ-L

Glue Pot	EVA ( Optional PUR )
* Laser Edge Banding	( Optional )
Type of Cutting	Servo Horizontal End cutting
Rough trimming	Yes
Corner round	Yes
Minimum workpiece size ( length×width )	240*120mm
Edge Banding Thickness	0.3-3mm
Speed	18-25 meters/min

( H-96SQ-L )

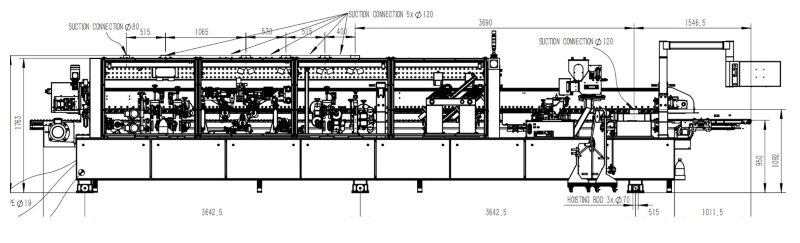

5. H-86-L-Z

Glue Pot	PUR
* Laser Edge Banding	( Optional )
Type of Cutting	Servo Horizontal End cutting
Rough trimming	Yes
Corner round	Yes
Minimum workpiece size ( length×width )	240*50mm
Edge Banding Thickness	0.3-3mm
Speed	18-22 meters/min
* Speed when width＜100mm	Needs to be slowed down
