H-86-L belongs to heavy duty high quality edge banding machine, all main components are imported, such as cylinder from FESTO, valves are from AVENTICS and so on. adopts top level assembly technique standard for edge banding machine.
Brand:
DEELEEItem NO.:
H-86-L
1. Machine Configurations
| Segregation apparatus | Pre-milling | Panel preheating | Gluing | Pre-melting | EVA glue pot 1 |
| O | O | O | O | O | O |
| PUR glue pot 2 | Single two-color PUR | Laser facility | Diagonal end cutting | Horizontal end cutting | Corner round |
| ◎ | ◎ | ◎ | O | ◎ | O |
| Rough trimming | Fine trimming | Scraper 1 | Scraper 2 | Light-duty scraper | Heavy-duty scraper |
| O | O | O | ◎ | O | ◎ |
| Cleaning device | Polishing 1 | Polishing 2 | Magazine for 2 edges | Saw grooving unit | |
| O | O | O | O | ◎ |
Standard: O Optional: ◎
2. Machine Parameters
Material Feeding rate: 18~32 m / minute (related to the processing workpiece material) When the thickness of the workpiece is greater than 40 mm, such as starting the front and rear cutting device, the maximum feed speed is 25 m / minute when the tracking corner round device is started, the plate spacing is 400 mm, and the maximum feed speed is 25 m / minute.
Narrow workpiece width: 55 mm
Workpiece external suspension: 30 mm
Workpiece thickness: 8~60 mm
Material thickness when using the pre-milling device: 12~40 mm (if milling, thickness up to 60 mm)
Roll-type edge banding strip thickness: 0.3mm-3mm

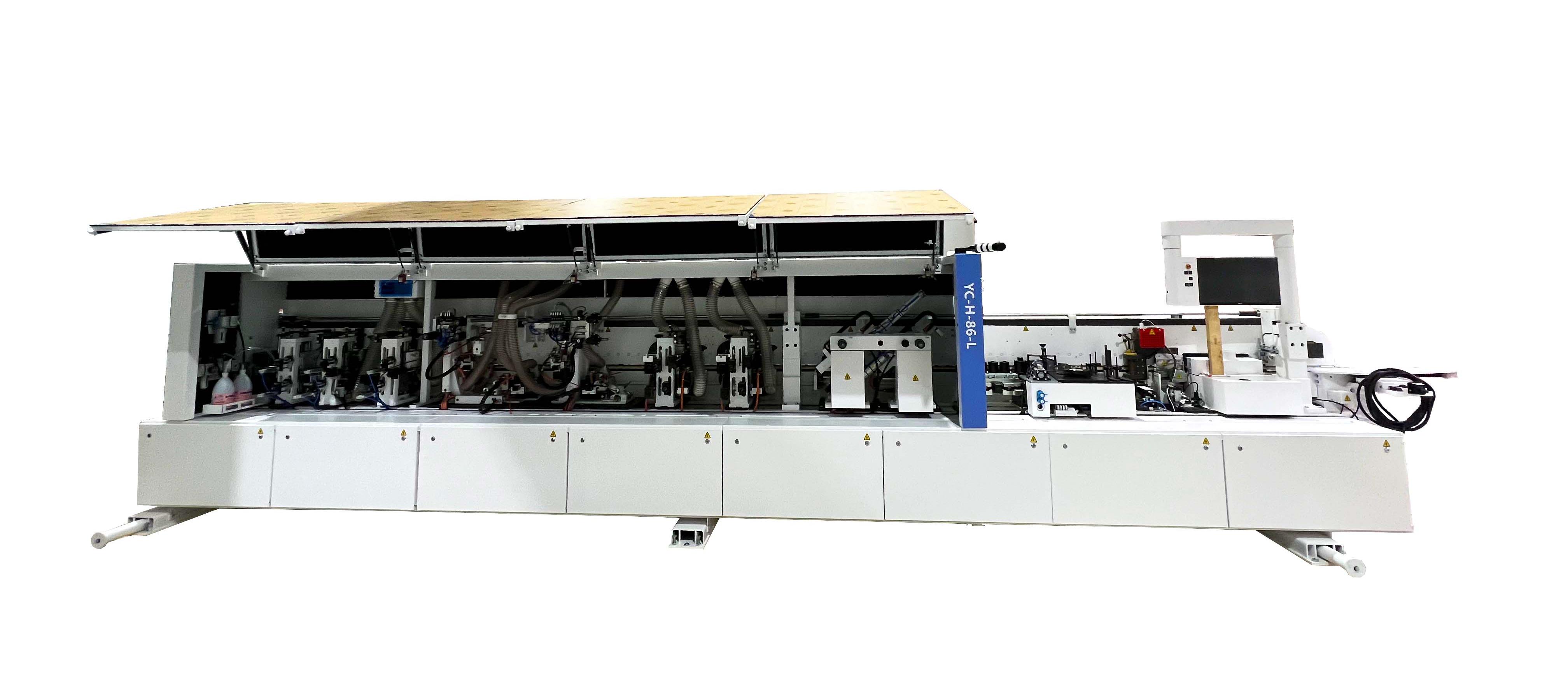

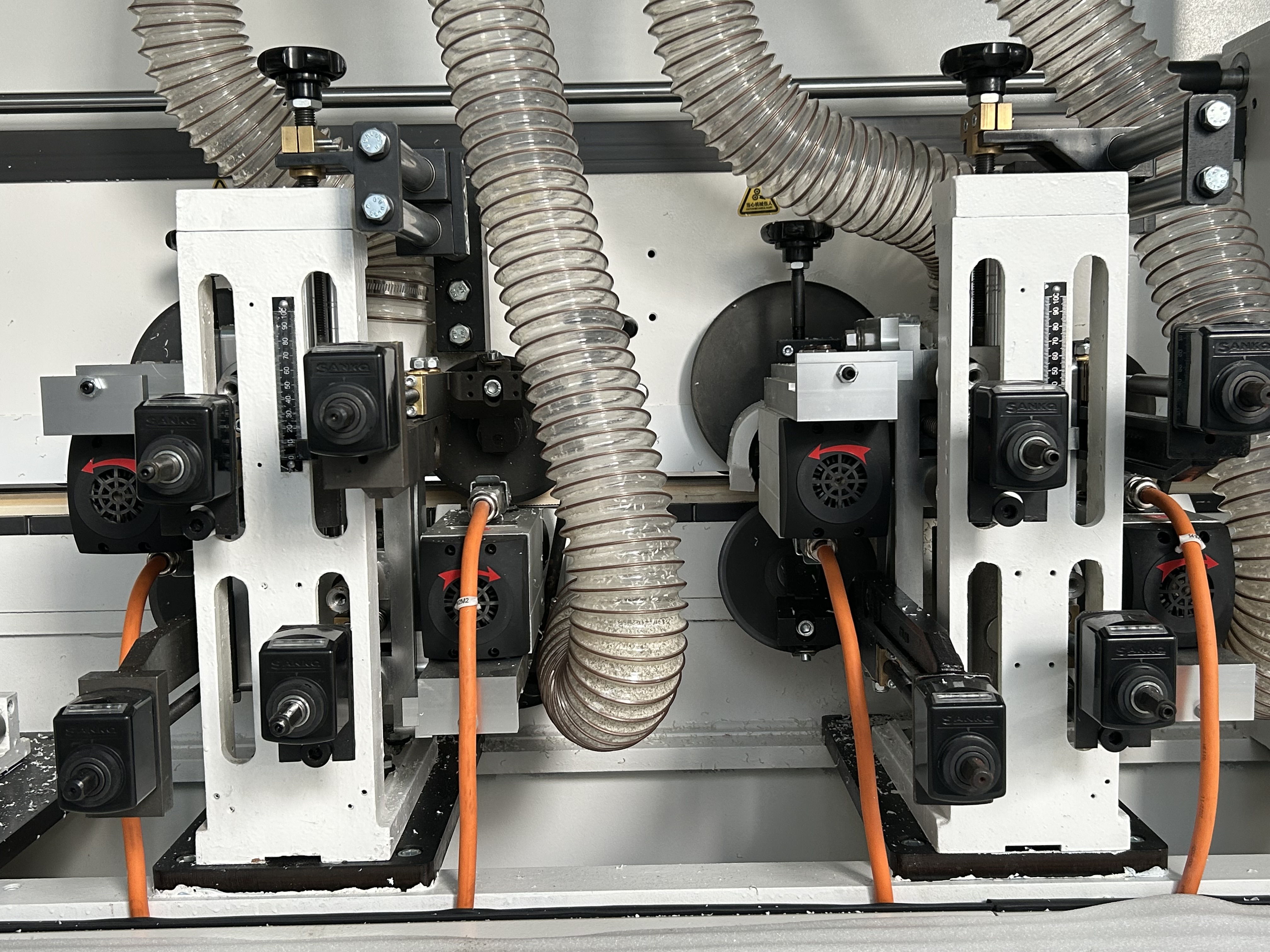

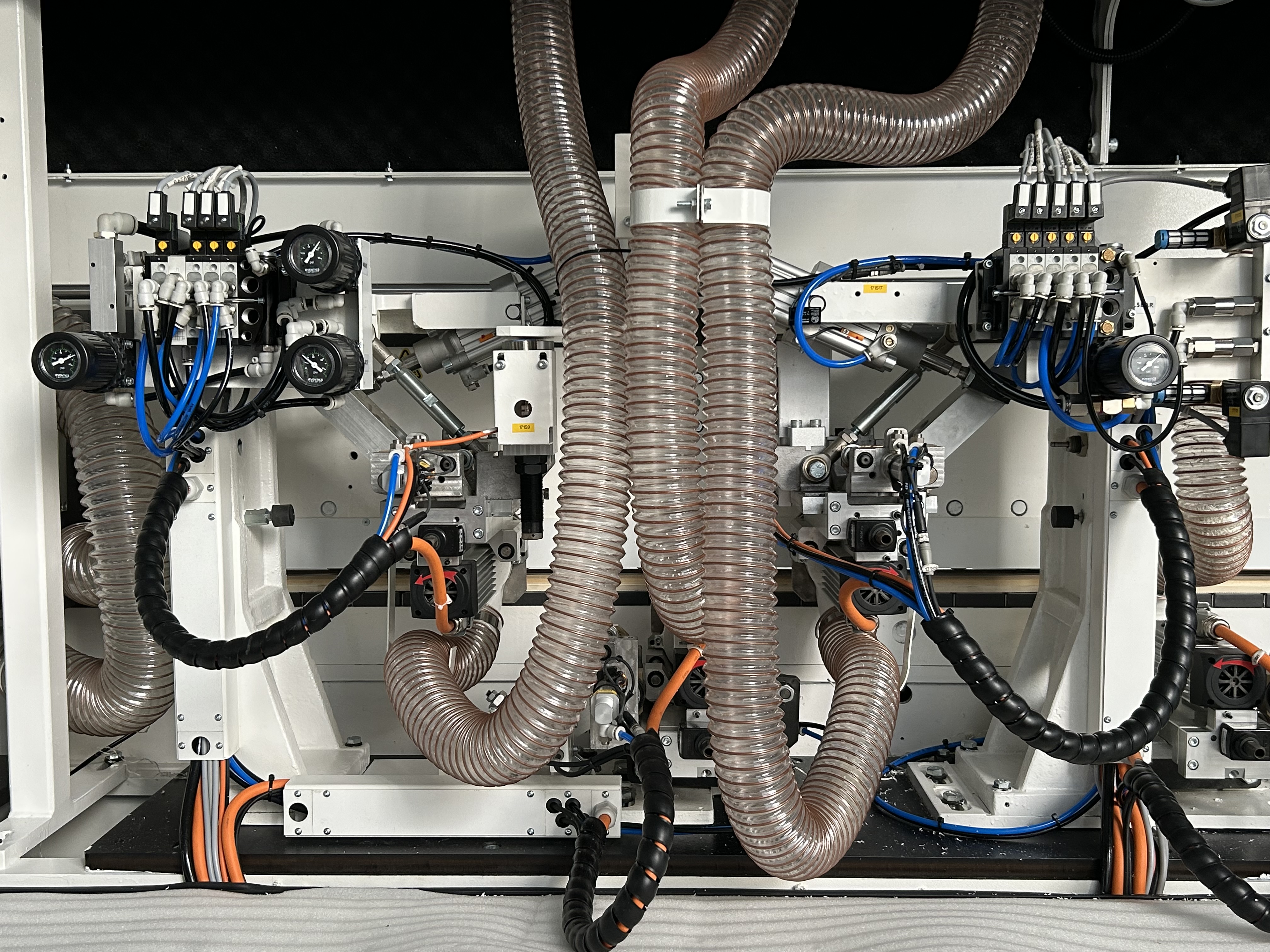

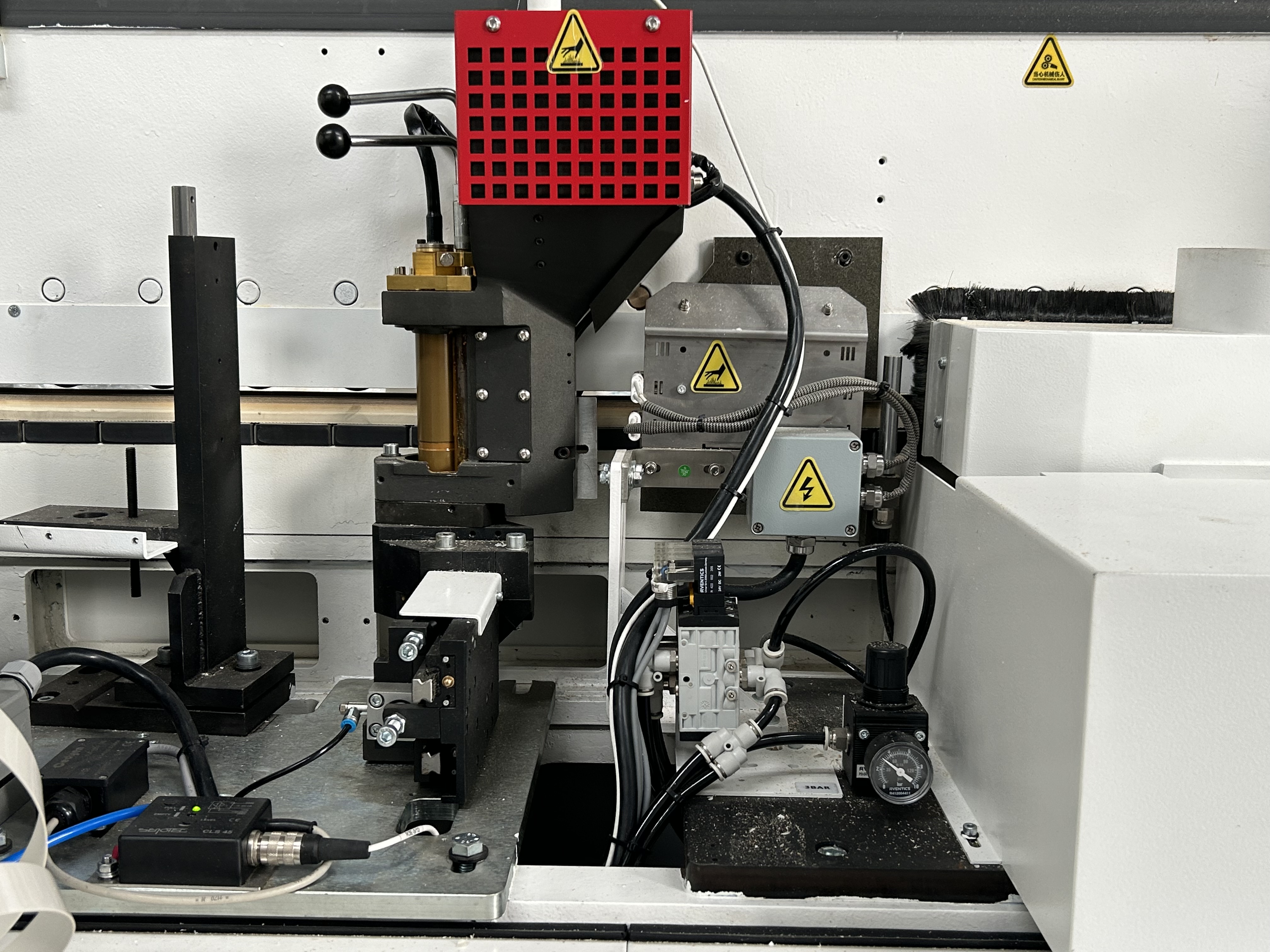

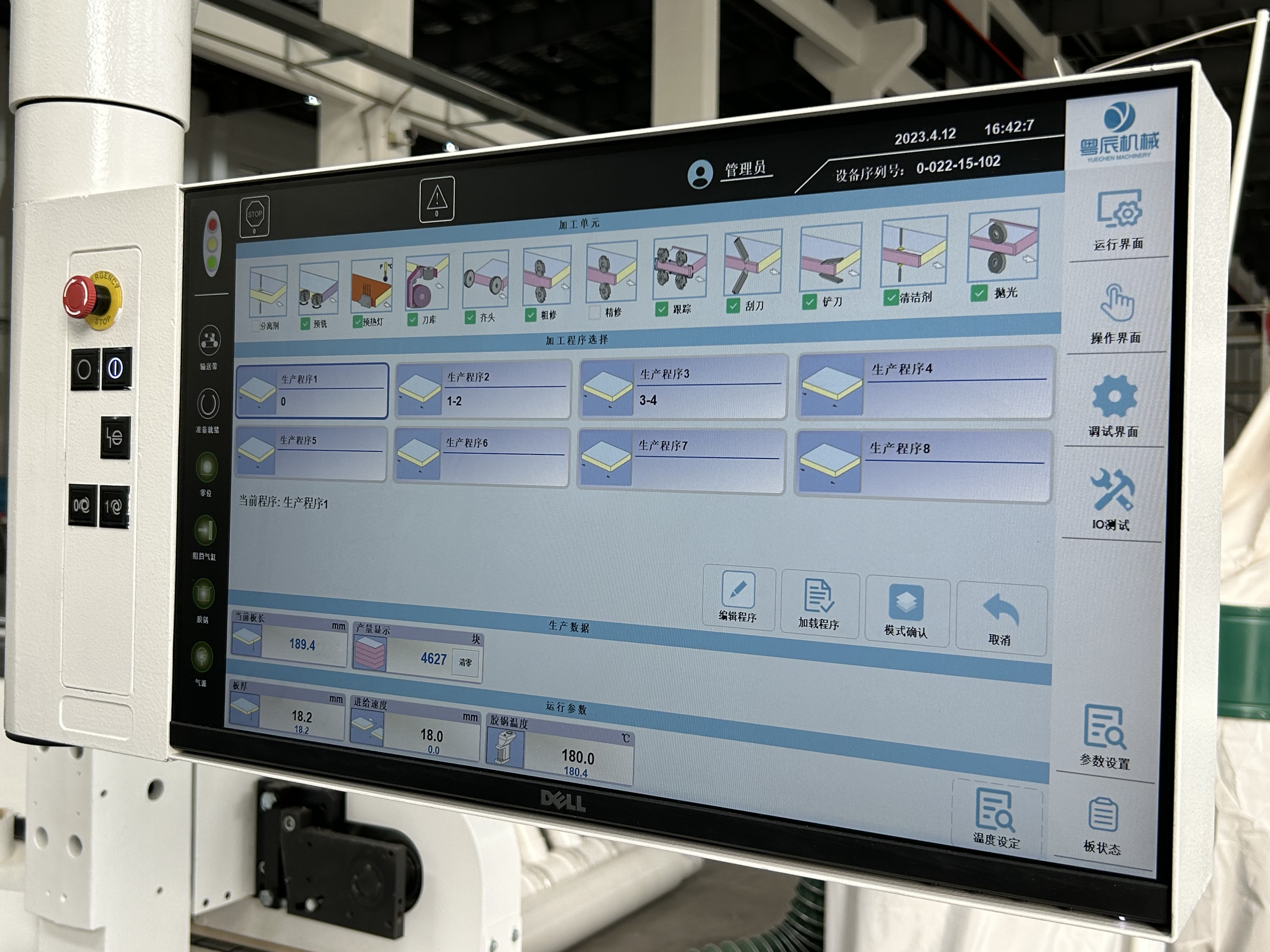

3. Machine Photos
